Luogo di origine:
Shanghai, Cina
Marca:
carterberg
Certificazione:
IATF16949
Numero di modello:
CB-4

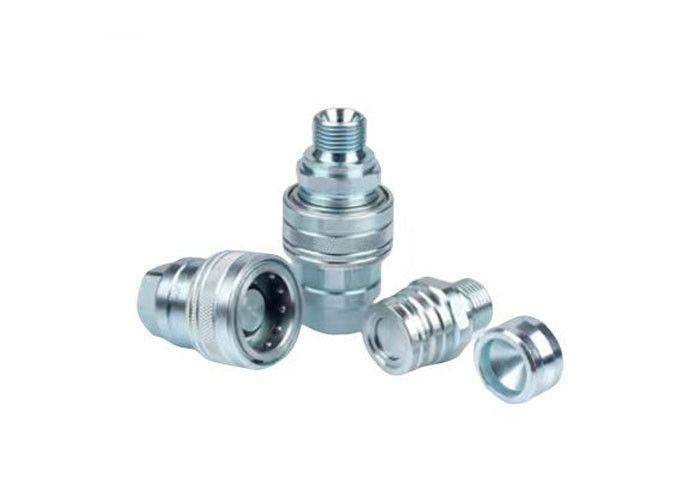

Applications: The coupling brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size(in) | 1/2 |
| Rated Pressure(PSI) | 3000 |
| Rated Flow(GPM) | 12 |
| Temperature Range(std seals) | -20℃ to +120℃ |
| Standard seal material | NBR |
Features
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socked and plug are precision machined from solid bar stock.
6.Compatible with FASTER VF Series.GROMELLE Q-9000 Series.
| PARTNO. | T | HEX1 | HEX2 | ￠D | L | LS | LP |
| CB-S4S-4MG | G1/2 | 27 | 32 | 44 | 88 | 55.5 | 48 |
